Hi all, with the help of various sections of this excellent forum, i am gutting my kitchen and thought i would post some pictures of the frightening wiring i have uncovered so far...

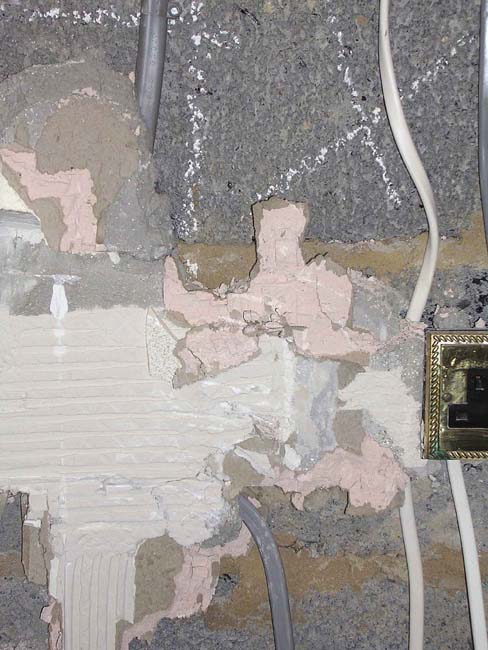

10mm cable goes in, 6mm cable comes out...

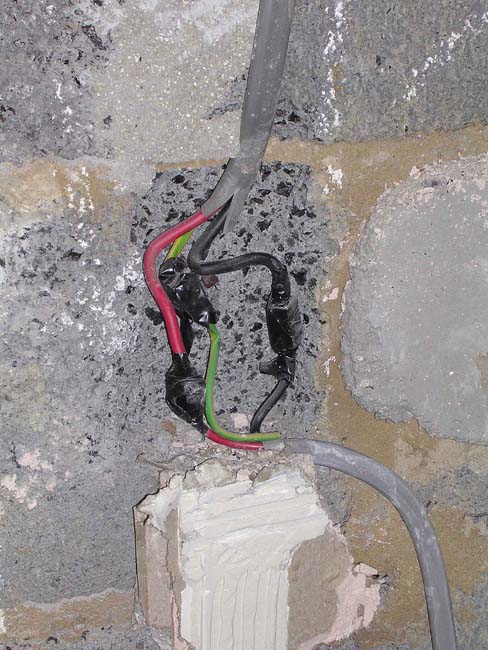

Behind the plaster, looks like butt connectors...

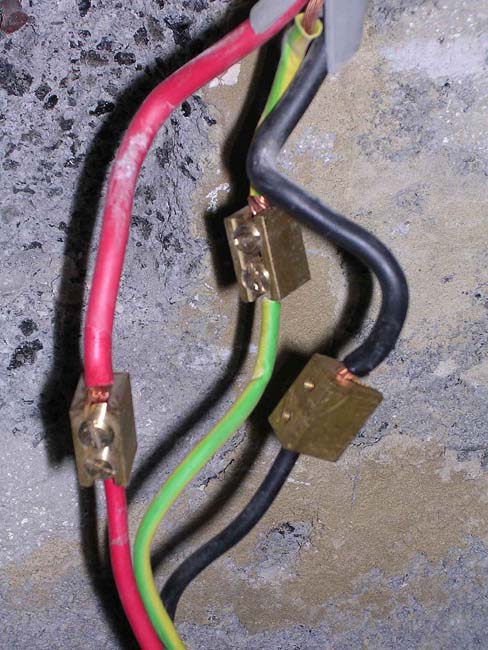

Oh dear, its just brass blocks and a little insulating tape...

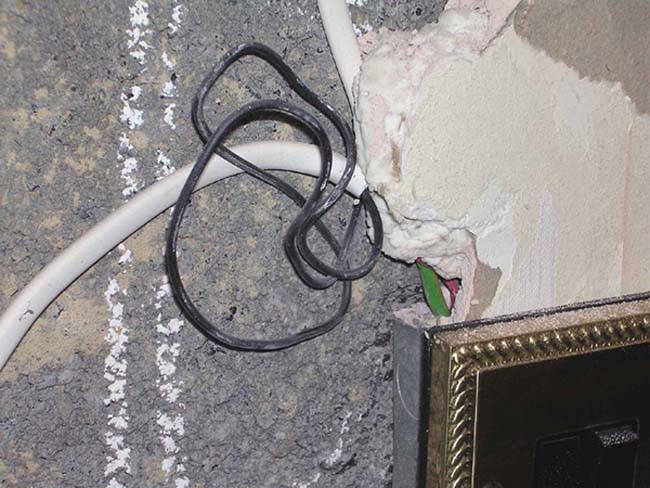

Nice bit of looping on the lightswitch...

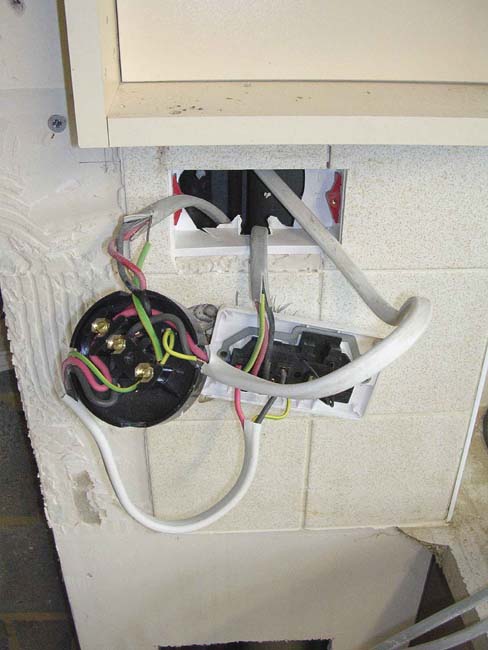

Shower spur from cooker supply...

These bits worried me a lot. The cable is the cooker supply on a 32A breaker, 10mm at the consumer unit, extended with the brass blocks from the original position round to where it is now. I guess the owner wanted a shower so they punched out the back of the box and spliced the shower cable in to the cooker supply!

To make matters worse, the shower currently fitted is a power shower which runs from the tank so it only uses 150W for the pump. So now we have a device that can only take 150W running directly from a 32A supply!

The 6mm cable goes right into the shower unit, they just cut away a few strands of the copper to get it into the tiny connectors! Naturally, i have now pulled the shower supply up into the loft and connected it into the ring main via a SFCU with 3A fuse, that seems a bit more correct

To rectify the cooker problem, i have pulled the 10mm cable up to the top of the wall units and will fit a 45A joint box with pattress so it is accessible, then run to the new cooker switch and onto the new cooker connector point. I cant run a whole new cable but this seems ok to me.

Thoughts anyone??

Dave
